TSL Module Configuration

May 8th, 2025

TSL Module Configuration

The TSL (Time-Series Library) module is a new PointValueDao implementation for Mango 4.3 which supports reading/writing to various time-series databases via an abstraction layer library written by Radix IoT. Currently, the TSL module supports two different databases:

Aggregation Support

Starting from Mango 4.4, the TSL module supports pre-aggregating point values and storing them so they can be queried using Mango’s “rollup” mechanism. Down-sampling point values in this fashion can reduce the disk usage of the stored values dramatically — e.g., 5s period data aggregated into 15-minute windows reduces samples by a factor of 180.

The TSL module supports storing aggregates for NUMERIC data type points only. It stores count, sum, min, and max; and calculates average as arithmetic mean.

Three new rollup types were added:

Original Rollup New Rollup (Aggregates) Difference
MINIMUM MINIMUM_IN_PERIOD Excludes the start value of each period
MAXIMUM MAXIMUM_IN_PERIOD Excludes the start value of each period
AVERAGE ARITHMETIC_MEAN Time-weighted average vs. arithmetic mean

The TSL module will store raw data for a configured amount of time (termed the “boundary” period), after which the raw data is aggregated and stored in a separate aggregates table. Querying of point values across this boundary is seamless, the raw data is aggregated on the fly and concatenated with the pre-aggregated values. Both the raw data and the pre-aggregated data can be resampled to any requested rollup period, e.g. if you have 15 minute aggregates you can still view a hourly rollup - the backend will combine 4x aggregate values into a single hourly aggregate.

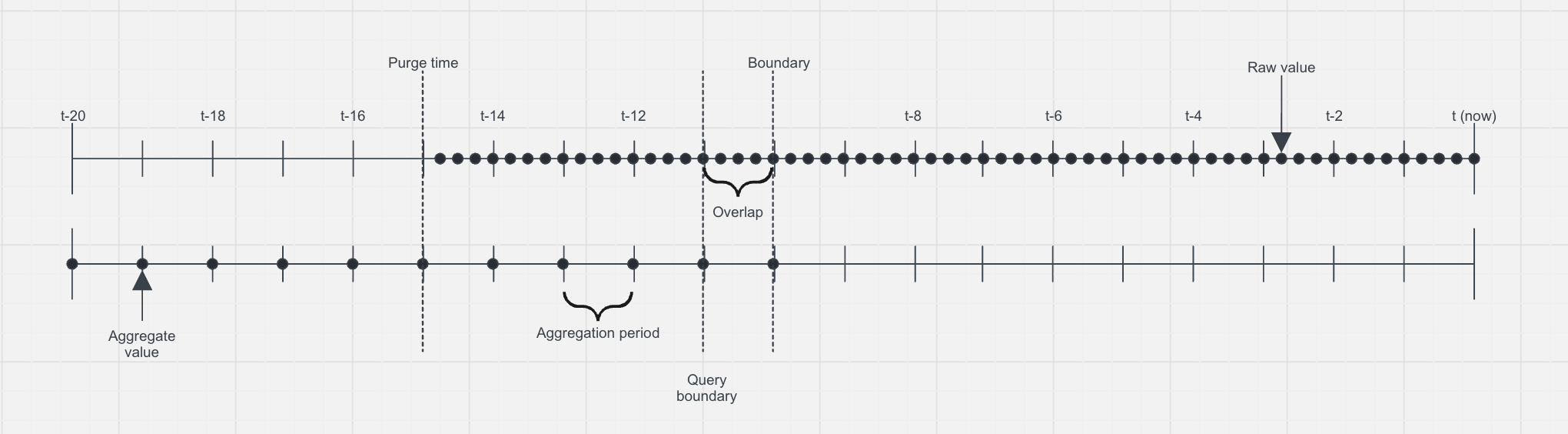

TSL Aggregation Boundary Timeline

Retention Policies

Data retention is configured at the database level. Mango’s Purge System Settings have no effect on TSL data.

Suggested policy:

Numeric Values

  • Keep raw data for 3 weeks
  • Aggregate 15-minute periods
  • Retain aggregates for 10 years

Non-Numeric Values

  • Keep raw data for 10 years
  • Use “log on change” if needed
  • No aggregation is applied

Suggested TimescaleDB Settings

# enable timescale and set to highest priority
db.tsl.timescale.enabled=true
db.tsl.timescale.order=0
# configure database connection parameters
db.tsl.timescale.host=localhost
db.tsl.timescale.port=5432
db.tsl.timescale.db=mango_tsl
db.tsl.timescale.username=mango
db.tsl.timescale.password=password
# max number of records to insert at once (not used for queries)
db.tsl.timescale.chunkSize=16384
# how to handle duplicate values for the same series/timestamp (UPDATE/IGNORE/ERROR)
db.tsl.timescale.conflictMode=UPDATE
# time zone for truncating dates so they align with aggregation period
db.tsl.timescale.aggregation.zone=UTC
# aggregation period (note: if period is not specified, aggregation is disabled)
db.tsl.timescale.aggregation.period=15 MINUTES
# boundary where querying switches between aggregate/raw values
db.tsl.timescale.aggregation.boundary=2 WEEKS
# overlap between aggregate values and raw values
db.tsl.timescale.aggregation.overlap=1 DAYS

Suggested Clickhouse Settings

# enable clickhouse and set to highest priority
db.tsl.clickhouse.enabled=true
db.tsl.clickhouse.order=0
# configure database connection parameters
db.tsl.clickhouse.host=localhost
db.tsl.clickhouse.port=8123
db.tsl.clickhouse.db=default
db.tsl.clickhouse.username=default
db.tsl.clickhouse.password=
# max number of records to insert at once (not used for queries)
db.tsl.clickhouse.chunkSize=16384
# how to handle duplicate values for the same series/timestamp (UPDATE/IGNORE)
db.tsl.clickhouse.conflictMode=UPDATE
# time zone for truncating dates so they align with aggregation period
db.tsl.clickhouse.aggregation.zone=UTC
# aggregation period (note: if period is not specified, aggregation is disabled)
db.tsl.clickhouse.aggregation.period=15 MINUTES
# boundary where querying switches between aggregate/raw values
db.tsl.clickhouse.aggregation.boundary=2 WEEKS
# overlap between aggregate values and raw values
db.tsl.clickhouse.aggregation.overlap=1 DAYS

Setting Clickhouse Retention Policy

Manually configure the raw data table to retain data longer for your desired data types. We suggest that you keep at least 3 weeks of raw data in case the aggregation process fails, this gives a buffer to allow aggregation later before the raw data is deleted. The following command keeps raw data for numeric values for 21 days and raw data for all other data types for 10 years.

📚 MergeTree | ClickHouse Docs

ALTER TABLE data MODIFY TTL
  toDateTime(time) + INTERVAL 21 DAY DELETE WHERE numeric_value IS NOT NULL,
  toDateTime(time) + INTERVAL 10 YEAR DELETE;

If necessary one can configure the aggregated data retention. This only applies to numeric value aggregations.

ALTER TABLE aggregates MODIFY TTL
  toDateTime(time) + INTERVAL 10 YEAR DELETE;



How To Set Up and Run ClickHouse TSL on Local Mango

Requirements

  • Local Mango instance with paths.data set to /opt/mango-data

Docker Installation

Using docker-compose:

services:
  clickhouse:
    image: clickhouse/clickhouse-server:latest
    ports:
      - 8123:8123
      - 9000:9000
    volumes:
      - ./ch_data:/var/lib/clickhouse/
      - ./ch_logs:/var/log/clickhouse-server/
    environment:
      - CLICKHOUSE_PASSWORD=password
      - CLICKHOUSE_USER=username

Or using docker run:

docker run -d \
  -p 8123:8123 -p 9000:9000 \
  -v $(realpath ./ch_data):/var/lib/clickhouse/ \
  -v $(realpath ./ch_logs):/var/log/clickhouse-server/ \
  -e CLICKHOUSE_PASSWORD=password -e CLICKHOUSE_USER=username \
  --name some-clickhouse-server-2 --ulimit nofile=262144:262144 clickhouse/clickhouse-server

If using Colima and you receive "operation not permitted" file errors, check:
colima issue #83

Create the Database

docker exec -it radixiot-clickhouse-1 bash
/bin/clickhouse-client
create database radix_tsl;

Configure Mango Properties

# Disable db.nosql
db.nosql.enabled=false

Enable clickhouse tsl


---------- TSL ----------


db.tsl.clickhouse.enabled=true
db.tsl.clickhouse.order=0
db.tsl.clickhouse.host=localhost
db.tsl.clickhouse.port=8123
db.tsl.clickhouse.db=radix_tsl
db.tsl.clickhouse.username=username
db.tsl.clickhouse.password=password
db.tsl.clickhouse.chunkSize=16384


---------- TSL ----------


Set up some defaults if you need to


------ TSL DEFAULTS ------


db.tsl.clickhouse.batchInsert.threadCount=4
db.tsl.clickhouse.conflictMode=UPDATE
db.tsl.clickhouse.configureRetentionPolicy=false
db.tsl.clickhouse.aggregation.zone=UTC
db.tsl.clickhouse.aggregation.period=15 MINUTES
db.tsl.clickhouse.aggregation.boundary=2 WEEKS
db.tsl.clickhouse.aggregation.overlap=1 DAYS
db.tsl.clickhouse.aggregation.configureRetentionPolicy=false
db.tsl.clickhouse.aggregation.retentionPeriod=10 YEARS
db.tsl.clickhouse.socketTimeout=60000
db.tsl.clickhouse.connectionTimeout=60000


------ TSL DEFAULTS ------

Verify Clickhouse is working

Run Mango and check the logs for the string ClickhousePointValueDaoDefinition initialized.

Example:

INFO  2024-03-12T11:31:04,058 (com.infiniteautomation.mango.spring.MangoRuntimeContextConfiguration.pointValueDao:420) - Time series database ClickhousePointValueDaoDefinition initialized

Verify in the database that records are being inserted.

select * from radix_tsl.data;

You should see records being inserted with proper timestamps and values.

Example output:

┌────────────────────time─┬─series_id─┬─multistate_value─┬─numeric_value─┬─text_value─┬─binary_value─┐
│ 2024-03-12 17:28:52.062 │      1231 │             ᴺᵁᴸᴸ │             1 │ ᴺᵁᴸᴸ       │ ᴺᵁᴸᴸ         │
└─────────────────────────┴───────────┴──────────────────┴───────────────┴────────────┴──────────────┘
┌────────────────────time─┬─series_id─┬─multistate_value─┬─numeric_value─┬─text_value─┬─binary_value─┐
│ 2024-03-12 17:31:16.199 │      1231 │             ᴺᵁᴸᴸ │             1 │ ᴺᵁᴸᴸ       │ ᴺᵁᴸᴸ         │
└─────────────────────────┴───────────┴──────────────────┴───────────────┴────────────┴──────────────┘
┌────────────────────time─┬─series_id─┬─multistate_value─┬─numeric_value─┬─text_value─┬─binary_value─┐
│ 2024-03-12 17:29:02.062 │      1230 │             ᴺᵁᴸᴸ │            62 │ ᴺᵁᴸᴸ       │ ᴺᵁᴸᴸ         │
└─────────────────────────┴───────────┴──────────────────┴───────────────┴────────────┴──────────────┘
┌────────────────────time─┬─series_id─┬─multistate_value─┬─numeric_value─┬─text_value─┬─binary_value─┐
│ 2024-03-12 17:31:26.199 │      1230 │             ᴺᵁᴸᴸ │            62 │ ᴺᵁᴸᴸ       │ ᴺᵁᴸᴸ         │
└─────────────────────────┴───────────┴──────────────────┴───────────────┴────────────┴──────────────┘



How To Set Up and Run TimescaleDB TSL on Local Mango

Requirements

  • Mango running in IntelliJ and licensed
  • Docker installed

Docker Installation

Using docker-compose:

services:
  clickhouse:
    image: timescale/timescaledb:latest-pg14
    ports:
      - 5432:5432
    volumes:
      - </your/data/dir>:/var/lib/postgresql/data
    environment:
      - POSTGRES_PASSWORD=password

Or using docker run:

docker run -d \
  -p 5432:5432 \
  -e POSTGRES_PASSWORD=password \
  -v </your/data/dir>:/var/lib/postgresql/data \
  --name timescaledb timescale/timescaledb:latest-pg14

Connect to TimescaleDB container

docker exec -it timescaledb psql -U postgres

List Installed Extensions

postgres=# \dx

           List of installed extensions



Name       | Version |   Schema   |                                      Description

-------------+---------+------------+---------------------------------------------------------------------------------------
plpgsql     | 1.0     | pg_catalog | PL/pgSQL procedural language
timescaledb | 2.14.2  | public     | Enables scalable inserts and complex queries for time-series data (Community Edition)
(2 rows)

Create TimescaleDB database and connect to it

postgres=# CREATE DATABASE mango_tsl;
postgres=# \c mango_tsl

Mango Properties

# Disable db.nosql
db.nosql.enabled=false

Enable timescale tsl


---------- TSL ----------


enable timescale and set to the highest priority


db.tsl.timescale.enabled=true
db.tsl.timescale.order=0


configure database connection parameters


db.tsl.timescale.host=localhost
db.tsl.timescale.port=5432
db.tsl.timescale.db=mango_tsl
db.tsl.timescale.username=postgres
db.tsl.timescale.password=password


max number of records to insert at once (not used for queries)


db.tsl.timescale.chunkSize=16384


how to handle duplicate values for the same series/timestamp (UPDATE/IGNORE/ERROR)


db.tsl.timescale.conflictMode=UPDATE


time zone for truncating dates, so they align with aggregation period


db.tsl.timescale.aggregation.zone=UTC


aggregation period (note: if period is not specified, aggregation is disabled)


db.tsl.timescale.aggregation.period=15 MINUTES


boundary where querying switches between aggregate/raw values


db.tsl.timescale.aggregation.boundary=2 WEEKS


overlap between aggregate values and raw values


db.tsl.timescale.aggregation.overlap=1 DAYS


---------- TSL ----------

Verify Setup

Run mango and check the logs for the string TimescalePointValueDaoDefinition initialized

INFO  2024-04-05T16:35:23,600 (com.infiniteautomation.mango.spring.MangoRuntimeContextConfiguration.pointValueDao:420) - Time series database TimescalePointValueDaoDefinition initialized

List database relations

These commands connect to the TSL database and confirm that the proper tables are in place.

postgres=# \c mango_tsl
postgres=# \dt
 Schema |         Name          | Type  |  Owner
--------+-----------------------+-------+----------
 public | aggregates            | table | postgres
 public | flyway_schema_history | table | postgres
 public | point_values          | table | postgres
(3 rows)

Describe point_values table

This command inspects the structure of the point_values table to ensure that the raw point data is stored in a highly optimized format for time-series queries.

postgres=# \d point_values
   Column      |           Type           | Collation | Nullable | Default
------------------+--------------------------+-----------+----------+---------
 time             | timestamp with time zone |           | not null |
 series_id        | bigint                   |           | not null |
 multistate_value | integer                  |           |          |
 numeric_value    | double precision         |           |          |
 text_value       | text                     |           |          |
 binary_value     | boolean                  |           |          |
Indexes:
    "point_values_series_id_time_idx" UNIQUE, btree (series_id, "time" DESC)
    "point_values_time_idx" btree ("time" DESC)
Triggers:
    ts_insert_blocker BEFORE INSERT ON point_values FOR EACH ROW EXECUTE FUNCTION _timescaledb_functions.insert_blocker()

Describe aggregates table

This command inspects the structure of the aggregates table that holds the pre-aggregated numeric data so you can ensure that the rolled up values are being properly stored.

postgres=# \d aggregates
 Column   |           Type           | Collation | Nullable | Default
-----------+--------------------------+-----------+----------+---------
 time      | timestamp with time zone |           | not null |
 series_id | bigint                   |           | not null |
 min       | double precision         |           |          |
 max       | double precision         |           |          |
 count     | integer                  |           |          |
 sum       | double precision         |           |          |
Indexes:
    "aggregates_series_id_time_idx" UNIQUE, btree (series_id, "time" DESC)
    "aggregates_time_idx" btree ("time" DESC)
Triggers:
    ts_insert_blocker BEFORE INSERT ON aggregates FOR EACH ROW EXECUTE FUNCTION _timescaledb_functions.insert_blocker()

Querying point_values data

This SQL statement allows you to verify that time-series data is being properly stored with a series_ID and the date time/ point value combinations.

mango_tsl=# SELECT * FROM point_values limit 10;
          time          | series_id | multistate_value |   numeric_value    | text_value | binary_value
------------------------+-----------+------------------+--------------------+------------+--------------
 2024-04-05 00:00:00+00 |       309 |                  |                 50 |            |
 2024-04-05 00:00:05+00 |       309 |                  | 50.000182476907646 |            |
 2024-04-05 00:00:10+00 |       309 |                  |   49.9663825228253 |            |
 2024-04-05 00:00:15+00 |       309 |                  | 50.012480019475234 |            |
 2024-04-05 00:00:20+00 |       309 |                  |  49.91455146802638 |            |
 2024-04-05 00:00:25+00 |       309 |                  |  49.86211722809043 |            |
 2024-04-05 00:00:30+00 |       309 |                  |  49.81930953391918 |            |
 2024-04-05 00:00:35+00 |       309 |                  |  49.87720131460692 |            |
 2024-04-05 00:00:40+00 |       309 |                  |  49.90686387414849 |            |
 2024-04-05 00:00:45+00 |       309 |                  | 49.955001048885684 |            |
(10 rows)

Copyright © 2025 Radix IoT, LLC.
